ASTM A815 WPS31803 Duplex Steel S31803 Butt-welding Seamless Welded Pipa Cap
1. Specifications
| ASTM A815 UNS S32205 Duplex Steel Butt Weld Pipe Cap Standards | Designation |
| ASTM | A 815 |
| ASME | SA 815 |
| ASTM A815 UNS S32205 Duplex Steel Butt Weld Pipe Cap - Buttweld (B/W) Fitting |
| Sr. No. | Material | Size
(in mm) | Sch. & Swg. | Specification | Items |
| 1 | Seamless | 15 NB
to
300 NB | Sch. 5
to
Sch. XXs | B/W
ANSI B16.9 | Bend (Long & Short)
R=2D,3D,5D,10D Etc
Elbow (180°, 90° & 45°)
Tee (Equal & Unequal)
Reducer (Con & Ecc)
CAP
Stubend (Long & Short)
Nipple (Barrel) |
| 2 | Welded [ERW] | 15 NB
to
600 NB | Sch. 5
to
Sch. 80s | B/W
ANSI B16.9 |
| Note:- |
| Grade | Duplex 2205 | Super duplex 2507 |
| Value Added Service | Polish (Electro & Commercial)
Heat Treatment
Annealed & Pickled | Sand Blasting
Machining Etc. |
| Other Form | Dairy Fitting, Tube Fitting |
| Test Certificate | With Manufacturer Test Certificate
Under Third Party Inspection |
| Specialize | Long Bend with Radius – R = 3D, 5D & 10D
Pigabble Bend & As per your drawing |
2. FERRITIC STEEL
ASTM 815 WP27-33-429-430-430TI-446 (Duplex)
Duplex 2205, Duplex SAF 2205, Duplex SAF2205, Duplex UNS S31803, Din 1.4462 EN 10088 F51
Duplex SAF2205 SANMAC, URANUS 45N, PREN=33, PREN=34, PREN=35, PREN=36 DIN 1.4462
Duplex-2205 UNS S31803 / UNS S32205 DIN-1.4462 EN 10088-3 PREN = 33, PREN = 34, PREN = 35

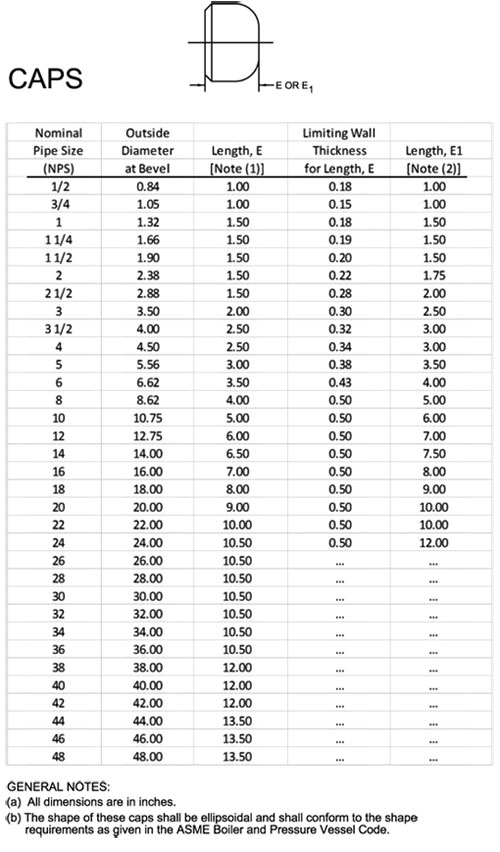

3. ASTM A815 UNS S32205 DUPLEX STEEL BUTT WELD PIPE CAP DIMENSION
4. SEFUL INFO:
Duplex 2205 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. “Duplex” describes a family of stainless steels that are neither fully austenitic, like 304 stainless, nor purely ferritic, like 430 stainless. The structure of 2205 duplex stainless steel consists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the work horse grade, 2205 is the most widely used grade in the duplex family of stainless steels.
Duplex Steel grades
| Grades | EN | UNS | ISO |
| 2205 | 1.4462 | S32205 / S31803 | 4462-318-03-I |
2205 Duplex Steel | SAF 2205
2205 is a duplex (austenitic-ferritic) stainless steel characterized by:
High resistance to stress corrosion cracking (SCC) in chloride-bearing environments
High resistance to stress corrosion cracking (SCC) in environments containing hydrogen sulphide
High resistance to general corrosion, pitting, and crevice corrosion
High resistance to erosion corrosion and corrosion fatigue
High mechanical strength - roughly twice the proof strength of austenitic stainless steel
Physical properties that offer design advantages
Good weldability
5. Standards
UNS S31803, S32205
EN number 1.4462
EN name X2CrNiMoN 22-5-3
W.Nr. 1.4462
DIN X2CrNiMoN 22 5 3
SS 2377
AFNOR Z2.CND22.05.03
6. Product standards
| Seamless tube: | EN 10216-5, NFA 49-217 |
| Seamless and welded tube: | ASTM A789 |
| Seamless and welded pipe: | ASTM A790 |
| Flanges and valves: | ASTM A182 |
| Fittings, Butt weld fittings: | ASTM A182; A815 |
| Plate, sheet and strip: | ASTM A240, EN 10088-2 |
| Bar and shapes: | ASTM A276, A479, EN 10088-3 |
| Forged billets | EN 10088-3 |
Chemical composition (nominal) %
| C | Si | Mn | P | S | Cr | Ni | Mo | N |
| ≤0.030 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.015 | 22 | 5 | 3.2 | 0.18 |
7. Forms of supply
Seamless tube and pipe
Welded tube and pipe
Fittings
Flanges
Wire electrodes and filler wire/rods
Plate, sheet and wide strip
Bar steel
Forged products
Product Tags:
|
|

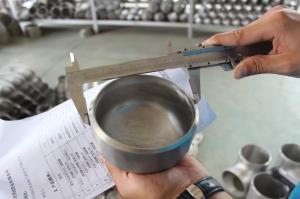

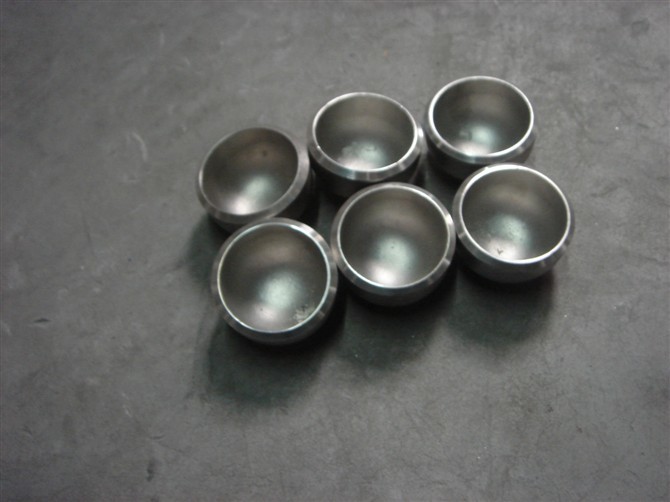

ASTM A815 WPS31803 Butt Welding Seamless Pipe Cap Duplex Steel S31803 Images
|
