High Precision Duplex Stainless Steel Fasteners DIN 933 Full Thread Hex Nut

Product Categories
Zhengzhou Huitong Pipeline Equipment Co.,Ltd.
Contact Now

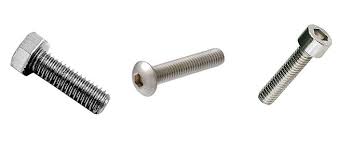

High Precision Duplex Stainless Steel Fasteners DIN 933 Full Thread Hex Nut

  • 1
  • 2

Brand Name : HT

Model Number : Duplex Stainless Steel Fasteners DIN 933 Hex Bolt with full thread Hex Nut

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs

Payment Terms : L/C,T/T, Western Union

Supply Ability : 1000 pcs per month

Delivery Time : 30-35 working days

Packaging Details : wooden case, wooden pallet

TYPE : BOLT NUT WASHER

NAME : Duplex Stainless Steel Fasteners DIN 933 Hex Bolt with full thread Hex Nut

STANDARD : ASME B18.2.1/18.2.2/18.22.1

Material Grade : Carbon steel, Alloy Steel, Stainless steel, Nickel Alloy

Finish : Cold galvanizing, Hot-dip Galvanizing, PTFE, Zinc Nickel, Black coating, Plain

Size : M6-M100

Contact Now

Duplex Stainless Steel Fasteners DIN 933 Hex Bolt with full thread Hex Nut

1.able according to DIN 931, ISO 4014:

dimensions in mm

Dimensions bolts with countersunk head square neck GOST 7786-81
P 0,8 1 1,25 1,5 1,75 2 2,5
D 9 11 14 18 23 28 35
k 4 5 6 8 10 12 15
V 5 6 8 10 12 16 20
b l≤120 16 18 22 26 30 38 46
l>120 - - - 32 36 44 52
l d
M5 M6 M8 M10 M12 M16 M20
20 +
25 + + + +
30 + + + + +
35 + + + + +
40 + + + + + +
45 + + + + + +
50 + + + + + + +
55 + + + + + + +
60 + + + + + + +
65 + + + + + + +
70 + + + + + + +
75 + + + + + + +
80 + + + + + + +
90 + + + + + +
100 + + + + +
110 + + + +
120 + + + +
130 + + + +
140 + + + +
150 + + + +
160 + + +
170 + + +
180 + + +
190 + + +
200 + + +


DIN 931
Sizes and characteristics of hexagon head bolts partially threaded DIN 931
D M3 M4 M5 M6 M8 M10 M12 M14 M16 M18
P 0,5 0,7 0,8 1 1,25 1,5 1,75 2 2 2,5
K 2 2,8 3,5 4 5,3 6,4 7,5 8,8 10 11,5
C min. 0,15 0,15 0,15 0,15 0,15 0,15 0,15 0,15 0,2 0,2
max. 0,4 0,4 0,5 0,5 0,6 0,6 0,6 0,6 0,8 0,8
R 0,1 0,2 0,2 0,25 0,4 0,4 0,6 0,6 0,6 0,6
S DIN 931 5,5 7 8 10 13 17 19 22 24 27
ISO 4014 16 18 21
e DIN 931 6,01 7,66 8,79 11,05 14,38 18,9 21,1 24,49 26,75 30,14
ISO 4014 17,77 20,03 23,36
B (L≤125) 12 14 16 18 22 26 30 34 38 42
B (125<L≤200) 18 20 22 24 28 32 36 40 44 48
B (L>200) - - - - - 45 49 53 57 61
D M20 M22 M24 M27 M30 M36 M42 M48 M56 M64
P 2,5 2,5 3 3 3,5 4 4,5 5 5,5 6
K 12.5 14 15 17 18.7 22.5 26 30 35 40
C min. 0,2 0,2 0,2 0,2 0,2 0,2 0,3 0,3 0,3 0,3
max. 0,8 0,8 0,8 0,8 0,8 0,8 1 1 1 1
R 0,8 0,8 0,8 1 1 1 1,2 1,6 2 2
S DIN 931 30 32 36 41 46 55 65 75 85 95
ISO 4014 34
e DIN 931 33,53 38,85 39,98 45,2 50,85 60,79 71,3 82,6 93,56 104,9
ISO 4014 37,72
B (L≤125) 46 50 54 60 66 - - - - -
B (125<L≤200) 52 56 60 66 72 84 96 108 - -
B (L>200) 65 69 73 79 85 97 109 121 137 153

Din 931/Din En Iso 4014 Bolts

DIN 931 / DIN EN ISO 4014

Hex head bolts

Hex Bolts Mechanical and physical properties

Mechanical or physical property Property Class
8.8 10.9 12.9
≤ M16 > M16
Tensile Strength nom. 800 1000 1200
min. 800 830 1040 1220
Yield Strength 0.2% offset non- proportional elongation nom. 640 640 900 1080
min. 640 660 940 1100
Percentage elongation after fracture for machined test piece min. 12 12 9 8
Stress Under Proof Load nom. 580 600 830 970
Rockwell Hardness, HRC min. 22 23 32 39
max. 32 34 39 44
All units are displayed as newton per square millimeter (N/mm²)

Specification for bolts and reference standards

Characteristic Standard
Material Steel
General
Requirements		 International Standards ISO 8992
Thread Tolerance 6g
International Standard ISO 724, ISO 965-1
Mechanical Properties Property Classa d < 3mm: as agreed 3mm ≤ d ≤ 39mm: 8.8, 10.9 d > 39mm: as agreed
International Standards 3mm ≤ d ≤ 39mm: ISO 898-1 d < 3mm and d > 39mm
Tolerances International Standard ISO 4759-1
Finish and/or coating As processed
Requirements for electroplating are covered in ISO 4042
Requirements for non-electrolytically applied zinc flake coatings are covered in ISO 10683
If different electroplating requirements are desired or if requirements are needed for other finishes, they should be agreed between customer and supplier.
Limits for surface discontinuities are covered in ISO 6157-1
Acceptibility For acceptance procedure, see ISO 3269.
a For other property classes see ISO 898-1.

High Precision Duplex Stainless Steel Fasteners DIN 933 Full Thread Hex Nut

Hex Bolts Sizes

Nominal size and threaddiameter
d		 Pitch of thread P Thread Length b Depth of washer face c Transition Diameter da Diameter of unthreaded shank
ds		 Dia. of washer face dw Width across corners e Thickness of head k Radius under head r Width across flats
s
coarse pitch Bolt
≤125		 Bolt 125-200 Bolt
≥200		 min. max. max. min. max. min. min. nom. min. min. max.
M10 1.50 26 32 45 0.15 0.6 11.20 9.64 10.0 14.47 17.59 6.40 0.4 15.57 16.00
M12 1.75 30 36 49 0.15 0.6 13.70 11.57 12.00 16.47 19.85 7.50 0.6 17.57 18.00
M14 2.00 34 40 53 0.15 0.6 15.70 13.57 14.00 19.15 22.78 8.80 0.6 20.16 21.00
M16 2.00 38 44 57 0.2 0.8 17.70 15.57 16.00 22.00 26.17 10.00 0.6 23.15 24.00
M18 2.50 42 48 61 0.2 0.8 20.20 17.57 18.00 24.85 29.56 11.50 0.6 26.16 27.00
M20 2.50 46 52 65 0.2 0.8 22.40 19.48 20.00 27.70 32.95 12.50 0.8 29.16 30.00
M22 2.50 50 56 69 0.2 0.8 24.40 21.48 22.00 31.35 37.29 14.00 0.8 33.00 34.00
M24 3.00 54 60 73 0.2 0.8 26.40 23.48 24.00 33.25 39.55 15.00 0.8 35.00 36.00
M27 3.00 60 66 79 0.2 0.8 30.40 26.48 27.00 38.00 45.20 17.00 1.0 40.00 41.00
M30 3.50 66 72 85 0.2 0.8 33.40 29.48 30.00 42.75 50.85 18.70 1.0 45.00 46.00
M33 3.50 – 78 91 0.2 0.8 36.40 32.38 33.00 46.55 55.37 21.00 1.0 49.00 50.00
M36 4.00 – 84 97 0.2 0.8 39.40 35.38 36.00 51.11 60.79 22.50 1.0 53.80 55.00
M39 4.00 – 90 103 0.3 1.0 42.40 38.38 39.00 55.86 66.44 25.00 1.0 58.80 60.00
M42 4.50 – 95 109 0.3 1.0 45.60 41.38 42.00 59.95 71.30 26.00 1.2 63.10 65.00
M45 4.50 – 102 115 0.3 1.0 48.6 44.38 45.00 64.70 76.95 28.00 1.2 68.10 70.00
M48 5.00 – 108 121 0.3 1.0 52.60 47.38 48.00 69.45 82.60 30.00 1.6 73.10 75.00
M52 5.00 – 116 129 0.3 1.0 56.60 51.26 52.00 74.20 88.25 33.00 1.6 78.10 80.00
M56 5.50 – – 137 0.3 1.0 63.00 55.26 56.00 78.66 93.56 35.00 2.0 82.80 85.00
M60 5.50 – – 145 0.3 1.0 67.00 59.26 60.00 83.41 99.21 38.00 2.00 87.0 90.00
M64 6.00 – – 153 0.3 1.0 71.00 63.26 64.00 88.16 104.86 40.00 2.0 92.80 96.00

Din 933/Din EN ISO 4017 Hex Set Screws

DIN 933 / DIN EN ISO 4017

Hex head screws

Nominal size and thread Pitch of thread P Depth of washer face c Transition Diameter da Dia. of washer
face dw		 Width across corners e Thickness of head k Radius under head r Width across flats
s
diameter
d		 coarse pitch min. max. max. min. min. nom. min. min. max.
M10 1.50 0.15 0.6 11.20 14.47 17.59 6.40 0.4 15.57 16.00
M12 1.75 0.15 0.6 13.70 15.47 19.95 7.50 0.6 17.57 18.00
M14 2.00 0.15 0.6 15.70 19.15 22.78 8.80 0.6 20.16 21.00
M16 2.00 0.2 0.8 17.70 22.00 26.17 10.00 0.6 23.16 24.00
M18 2.50 0.2 0.8 20.20 24.85 29.56 11.50 0.6 26.16 27.00
M20 2.50 0.2 0.8 22.40 27.70 32.95 12.50 0.8 29.16 30.00
M22 2.50 0.2 0.8 24.40 31.95 37.29 14.00 0.8 33.00 34.00
M24 3.00 0.2 0.8 25.40 33.25 39.55 15.00 0.8 35.00 36.00
M27 3.00 0.2 0.8 30.40 38.00 45.20 17.00 1.0 40.00 41.00
M30 3.50 0.2 0.8 33.40 42.75 50.85 18.70 1.0 45.00 46.00
M33 3.50 0.2 0.8 36.40 46.55 55.37 21.00 1.0 49.00 50.00
M36 4.00 0.2 0.8 39.40 51.11 60.79 22.50 1.0 53.80 55.00
M39 4.00 0.3 1.0 42.40 55.86 66.44 25.00 1.0 58.80 60.00
M42 4.50 0.3 1.0 45.60 59.95 71.30 26.00 1.2 63.10 65.00
M45 4.50 0.3 1.0 48.60 64.70 76.95 28.00 1.2 68.10 70.00
M48 5.00 0.3 1.0 52.60 69.45 82.50 30.00 1.6 73.10 75.00
M52 5.00 0.3 1.0 56.60 74.20 88.25 33.00 1.6 78.10 80.00
M56 5.50 0.3 1.0 63.00 78.66 93.56 35.00 2.0 82.80 85.00
M60 5.50 0.3 1.0 67.00 83.41 99.21 38.00 2.0 87.80 90.00
M64 6.00 0.3 1.0 71.00 88.16 104.86 40.00 2.0 92.80 95.00

Specification for bolts and reference standards

Characteristic Standard
Material Steel
General
Requirements		 International Standards ISO 8992
Thread Tolerance 6g
International Standard ISO 724, ISO 965-1
Mechanical Properties Property Classa d < 3mm: as agreed
3mm ≤ d ≤ 39mm: 8.8, 10.9 d > 39mm: as agreed
International Standards d ≤ 39mm: ISO 898-1
d < 3mm and d > 39mm: as agreed
Tolerances International Standard ISO 4759-1
Finish and/or coating As processed
Requirements for electroplating are covered in ISO 4042
Requirements for non-electrolytically applied zinc flake coatings are covered in ISO 10683
If different electroplating requirements are desired or if requirements are needed for other finishes, they should be agreed between customer and supplier.
Limits for surface discontinuities are covered in ISO 6157-1
Acceptibility For acceptance procedure, see ISO 3269.
a For other property classes see ISO 898-1.

Mechanical and physical properties

Mechanical or physical property Property Class
8.8 10.9 12.9
≤ M16 > M16
Tensile Strength nom. 800 1000 1200
min. 800 830 1040 1220
Yield Strength 0.2% offset non- proportional elongation nom. 640 640 900 1080
min. 640 660 940 1100
Percentage elongation after fracture for machined test piece min. 12 12 9 8
Stress Under Proof Load nom. 580 600 830 970
Rockwell Hardness, HRC min. 22 23 32 39
max. 32 34 39 44
